Engineering Concrete batching plant

Name: "Engineering Concrete batching plant"
Rating: 5 (337 reviews)

SKU: 036235281X

Model: HZS180G

Product Details

Product Specification

Type	Engineering Concrete batching plant	Model	HZS180G
Params	: Parameter : Value : ------------------------------------------ : ---------------- : Theoretical Productivity : 180 m³/h : Installed Capacity : 250 kW : Nominal Capacity : 3000 L : Unloading Height : ≥3.8 m : Sandstone Measuring Range And Accuracy : (900-3000)kg ±2% : Cement Measuring Range And Accuracy : (300-1800)kg ±1% : Mixing Powder Measuring Range And Accuracy : (200-1000)kg ±1% : Water Measuring Range And Accuracy : (200-800)kg ±1% : Additive Measuring Range And Accuracy : (15-80)kg ±1%	Material	Steel
Applicable Industry	Ready-mixed concrete production, infrastructure construction, highways, bridges, tunnels, railways, airports, commercial and industrial buildings, precast concrete production, and other large-scale construction projects.

Feature

The DKTEC HZS120G Concrete Batching Plant is a high-capacity and reliable solution designed for large-scale construction projects and commercial concrete production. With a rated capacity of 120 m³/h, it features a robust modular structure, efficient aggregate feeding, accurate weighing systems, and a high-performance twin-shaft mixer to ensure fast and uniform concrete mixing. The plant is designed for stable operation, high productivity, easy maintenance, and flexible configuration, while its intelligent control system enables precise batching and convenient operation. With durable components and a layout optimized for efficient material flow, the HZS120G provides a cost-effective and dependable solution for demanding concrete production applications.

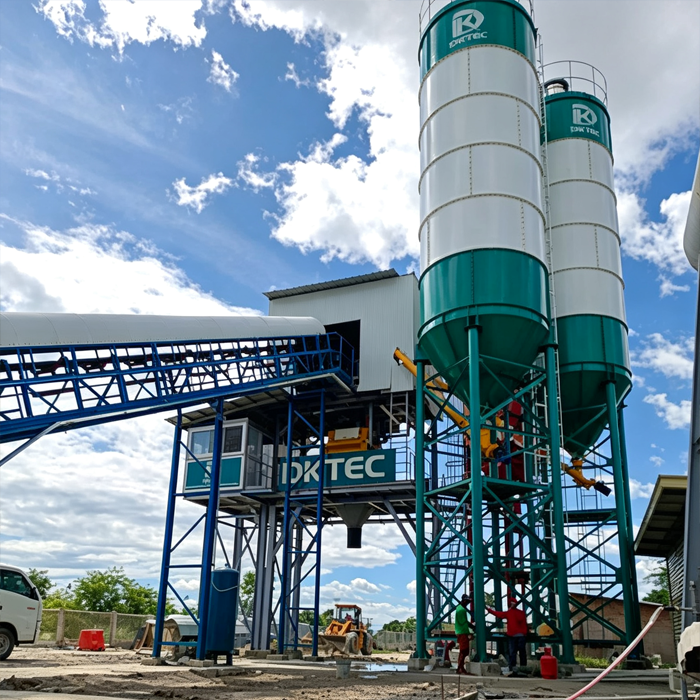

HZS180G
