Concrete batching plant

Name: "Concrete batching plant"
Rating: 5 (222 reviews)

SKU: 7508429621

Model: HZS90Y

Product Details

Product Specification

Type	Mobile concrete mixing plant	Model	HZS90Y
Params	: Parameter : Value : -------------------------------------- : ---------------- : Theoretical Productivity : 90 m³/h : Installed Capacity : 120 kW : Nominal Capacity : 1500 L : Unloading Height : ≥3.8 m : Sandstone Measuring Range And Accuracy : (600-3000)kg ±2% : Cement Measuring Range And Accuracy : (150-800)kg ±1% : Water Measuring Range And Accuracy : (100-300)kg ±1% : Additive Measuring Range And Accuracy : (10-30)kg ±1%	Material	Steel
Applicable Industry	Mobile concrete batching plants are widely used in construction, road and bridge projects, water conservancy, mining, railway, infrastructure, precast concrete production, and remote construction projects.

Feature

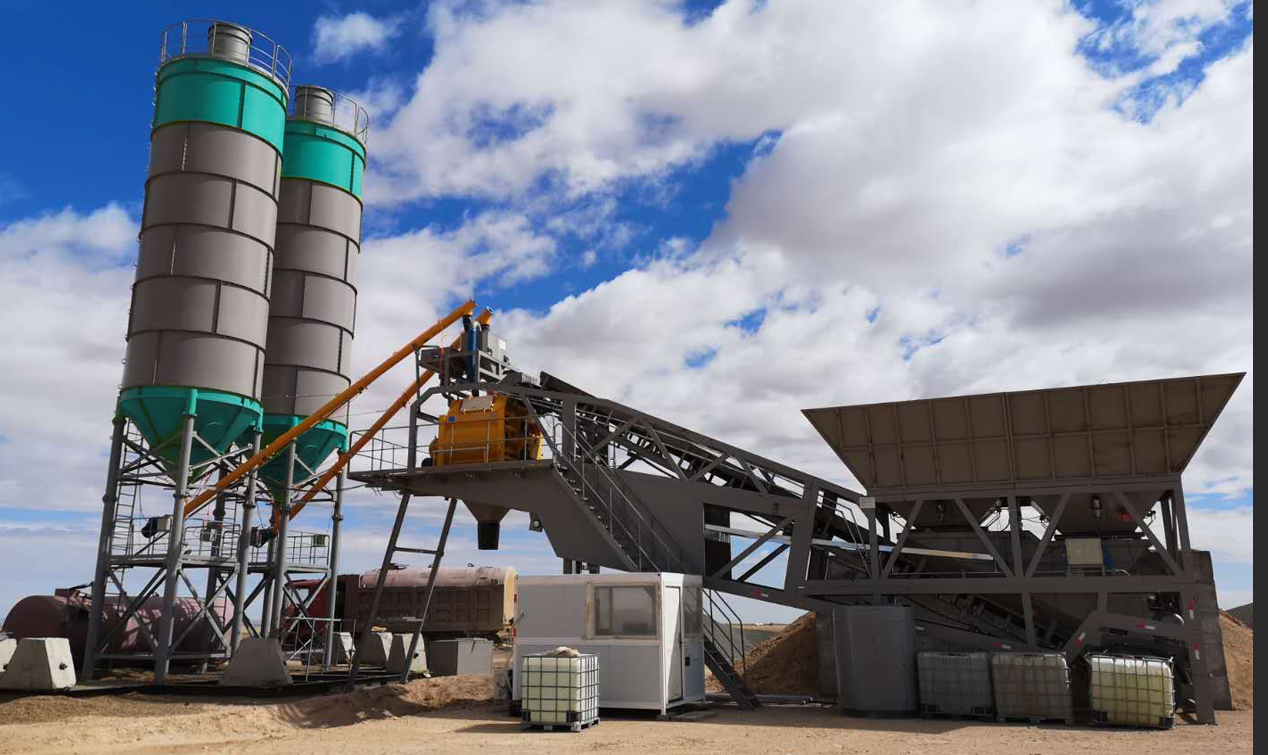

The DKTEC HZS90Y Mobile Concrete Batching Plant is a flexible and efficient solution designed for construction projects that require frequent relocation and on-site concrete production. With a capacity of up to 90 m³/h, it combines a compact modular design with integrated feeding, weighing, mixing, and control systems, allowing for quick installation, easy transportation, and convenient relocation. The plant requires minimal site preparation and can significantly reduce installation time and project setup costs. Equipped with a high-performance twin-shaft mixer and an intelligent control system, the HZS90Y delivers accurate batching, uniform mixing, and stable performance. It is an ideal choice for highways, bridges, tunnels, commercial construction, infrastructure projects, and remote or temporary construction sites.

HZS90Y
