Commercial Concrete Batching Plant

Name: "Commercial Concrete Batching Plant"
Rating: 5 (223 reviews)

SKU: 9222278933

Model: HZS120

Product Details

Product Specification

Type	Commercial Concrete Batching Plant	Model	HZS120
Params	Parameter ：Value ------------------------------------------ ：---------------- Theoretical Productivity ：120 m³/h Installed Capacity ：210 kW Nominal Capacity ：2000 L Unloading Height ：≥3.8 m Sandstone Measuring Range And Accuracy ：(600-2000)kg ±2% Cement Measuring Range And Accuracy ：(200-1200)kg ±1% Mixing Powder Measuring Range And Accuracy ：(200-800)kg ±1% Water Measuring Range And Accuracy ：(150-500)kg ±1% Additive Measuring Range And Accuracy ：(15-50)kg ±1%	Material	Steel
Applicable Industry	Suitable for large and medium-sized commercial concrete customers, with the best performance and the most comprehensive configuration. Production is efficient, precise and intelligent.

Feature

The HZS120 delivers 120 m³/h of high-quality concrete through a 2000L twin-shaft compulsory mixer, making it ideal for medium-to-large construction projects. It features precision weighing with ±2% accuracy for aggregates and ±1% for cement, water, and additives, all managed by a PLC-based control system with industrial PC and 24-inch LCD monitoring. Four 16m³ aggregate silos with anti-blocking devices, 800mm belt conveyors, and optional 150t powder silos with φ273mm/φ219mm screw conveyors ensure reliable material handling, while emergency stop switches, anti-fall protection, and dust-proof control cabinets guarantee safe, low-maintenance operation.

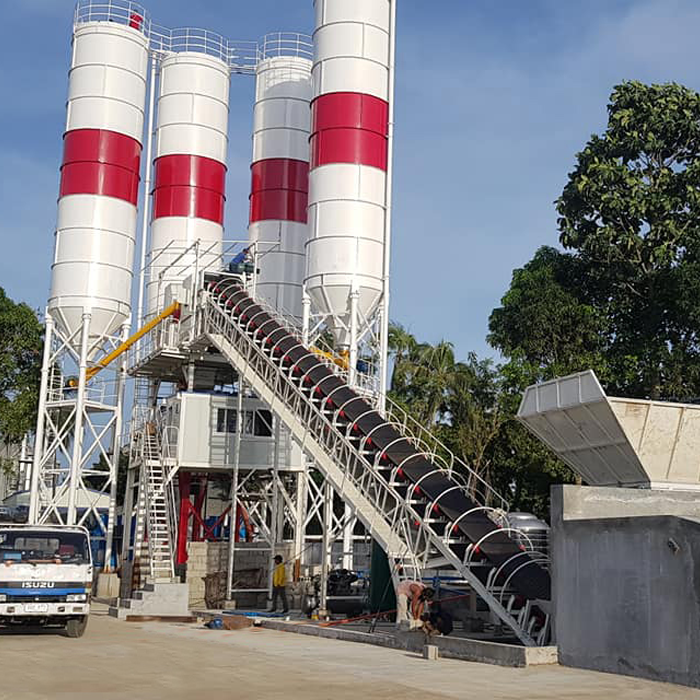

HZS120
