Commercial Concrete Batching Plant

Name: "Commercial Concrete Batching Plant"
Rating: 5 (520 reviews)

SKU: 0248937545

Model: HZS180

Product Details

Product Specification

Type	Commercial Concrete Batching Plant	Model	HZS180
Params	Parameter ：Value ------------------------------------------ ：---------------- Theoretical Productivity ：180 m³/h Installed Capacity ：250 kW Nominal Capacity ：3000 L Unloading Height ：≥3.8 m Sandstone Measuring Range And Accuracy ：(900-3000)kg ±2% Cement Measuring Range And Accuracy ：(300-1800)kg ±1% Mixing Powder Measuring Range And Accuracy ：(200-1000)kg ±1% Water Measuring Range And Accuracy ：(200-800)kg ±1% Additive Measuring Range And Accuracy ：(15-80)kg ±1%	Material	Steel
Applicable Industry	Suitable for large and medium-sized commercial concrete customers, with the best performance and the most comprehensive configuration. Production is efficient, precise and intelligent.

Feature

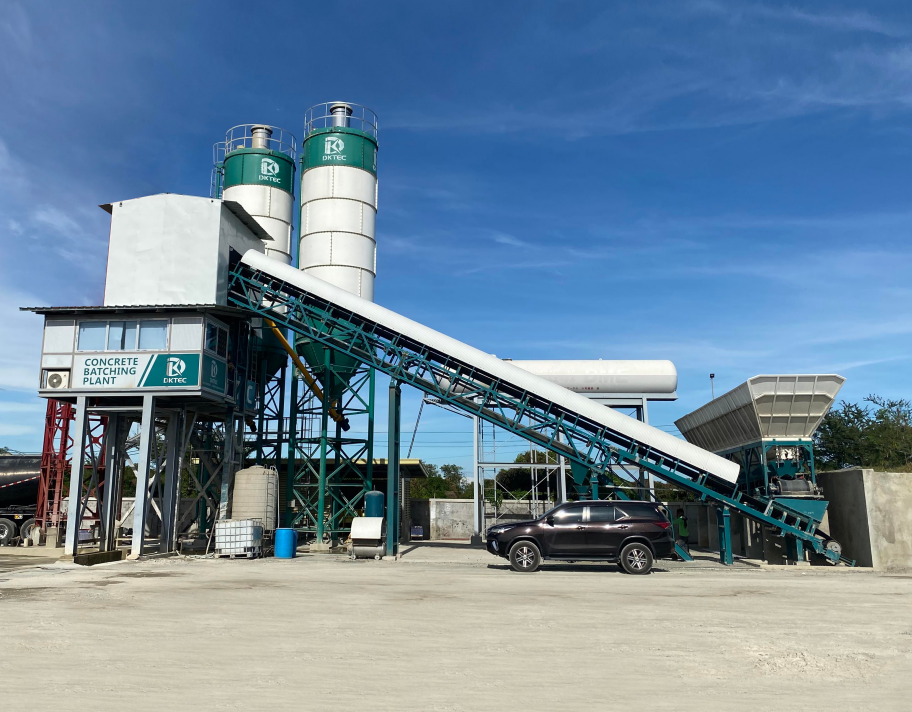

The HZS180 commercial concrete batching plant, with a theoretical capacity of 180 m³/h and a fully automatic twin-shaft forced mixer, is designed for large-scale engineering projects and commercial concrete companies. It boasts four core advantages: high efficiency and high output, accurate metering, stable and durable operation, and environmental friendliness. The system employs a dual unloading design (pneumatic/electro-hydraulic) to prevent material jamming and features microcomputer intelligent control, achieving a batching accuracy of ±1%. This not only enables rapid and uniform mixing of aggregates, cement, and water-based additives but also significantly improves the reliability and automation level of continuous operation. Simultaneously, the fully enclosed structure, combined with pulse dust removal and low-noise transmission, effectively controls dust and noise emissions, perfectly balancing high-quality concrete output and green plant construction requirements while ensuring low energy consumption and low maintenance costs.

HZS180
